Hydraulic Dragon Ring Saw - Black Edition

ACG Saws & Tools of Canada Inc.

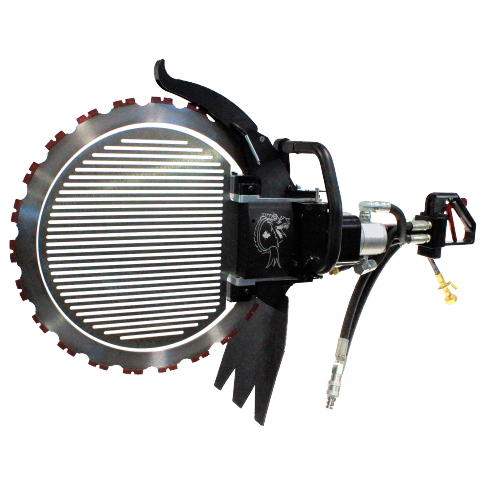

Hydraulic Dragon Ring Saw - Black Edition

Name: Hydraulic Dragon Ring Saw - Black Edition
Brand: ACG Saws & Tools of Canada Inc.
SKU: HDS2022-H8
Price: 5900.0 CAD
Availability: InStock

SKU: HDS2022-H8

$5,900.00

Description

The first hydraulic concrete cutting saw that cuts up to 20 inches (508mm) deep in block, concrete, and stone with a single blade.

Hydraulic Motor Flow

Quantity

*Dragon Saw Blades are sold separately, *Skid plates are sold with the ring blades only*

Hydraulics Specs

1/2” Flat-Face Quick Couplers
Hose Length: Approx. 12" Long
Pressure: 2,000 PSI (Max 2,500 PSI)
Weight: 29.8 lb (13.5 kg)

Blade Options

16" Ring Blade – Cuts up to 12" (300 mm)
20" Ring Blade – Cuts up to 16" (400 mm)
24" Ring Blade – Cuts up to 20 (500 mm)
Water-cooled operation only. Dry cutting is not recommended.

RESOURCES

Operator Manual

Parts List

How To Install your Blade

ACG SAWS & TOOLS OF CANADA INC.

What Makes Our Hydraulic Ring Saw Different?

20” Deep Cutting
Introducing the Hydraulic Dragon Ring Saw, tailored for concrete with an exceptional 20-inch cutting capability. This saw is a powerhouse for deep concrete and stone cutting, enabling precision and swift execution.
Eleminate pre cutting
Enhance your efficiency with a saw that removes the need to pre cut your openings. Transition seamlessly to your main concrete cutting tasks, boosting your output and reducing labor.
Precision without Overcuts
Our saw's precision engineering is optimized for concrete, providing spotless and exact cuts without extending beyond the mark, for results that meet the highest professional standards.
No Blade Slippage
Our saw comes with a patented drive system to remove any blade slipping with your driver roller. The more you push, tighter the drive gets on the blade
No Corner Drilling Required
Our Hydraulic Dragon Ring Saw negates the need for corner drilling in concrete, allowing for a smoother workflow and finer finishes, reducing subsequent corrective work.
100% Blade Utilization
Our patented design ensures uniform use across the entire blade. This promotes a longer blade life, reduces replacement costs, and guarantees consistent cutting depth throughout the blade's lifecycle.
Lightweight Design
Our Hydraulic Dragon Ring Saw is designed to be lightweight. This feature enhances handling and maneuverability, reducing operator fatigue and making it suitable for extended use without compromising comfort.
1-Year Warranty
Confident in the quality of our concrete cutting saw, we support your purchase with a full 1-year warranty, highlighting our dedication to your satisfaction and product excellence.
