If you have ever needed to open a thick concrete wall or slab, you know how important cutting depth is. Traditional saws, even those with a large blade, often stop short at about 6 or 7 inches. At ACG Saws, we have listened to Canadian contractors who need to go deeper and finish faster. This is where hydraulic ring saws stand out, providing unmatched depth and control for tough projects. Today, we dive into how these tools work, what sets them apart from other saws, and why their ring blades are now the gold standard for heavy-duty concrete cutting.
Concrete Saws and Cutting Depth: What Is Possible?
Handheld saws and standard walk-behind models typically use a round blade mounted at the centre. The physics of their design means that the maximum depth is only about half the blade diameter. For instance, even a 20-inch concrete saw might struggle to go deeper than 9 inches. For many jobs, that is simply not enough. Applications like window or doorway creation, utility penetrations, or concrete sample collection require greater depth, and they need it with less mess or risk to the surrounding structure.
Industry research published in Concrete Construction and by the International Association of Concrete Drillers & Sawers confirms that while wall saws can be rigged for more depth, they are bulky, expensive, and may not fit every job site.
The Hydraulic Ring Saw: Deep Cuts with Less Effort

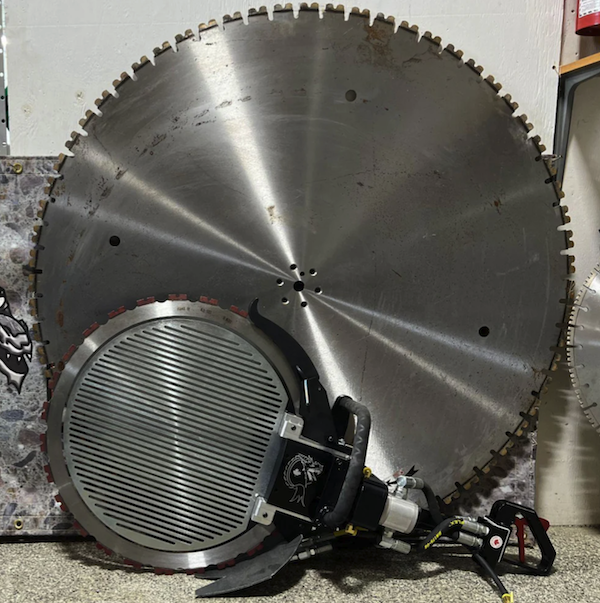

Ring saws are a different breed altogether. Rather than a traditional circular blade spinning on an arbour, a ring blade moves along guide rollers and is driven from its edge. This design eliminates the depth limitation of a central mounting hub. Our hydraulic ring saws at ACG Saws routinely achieve cutting depths of up to 15 inches, sometimes even 20, using a single ring blade, depending on material density and site conditions.
The hydraulic drive provides even, steady power with minimal vibration, making it an essential factor for both operator comfort and cut quality. Water cooling keeps diamond ring blades sharp and reduces dust, making it safer and cleaner for everyone on site. Canadian crews working on bridges, hospitals, or apartment retrofits can now cut through extra-thick walls without time-consuming setups or motor exhaust, making the workplace safer and more productive every day.
Why Depth and Blade Design Matter
Cutting deeper is not only about power. It is also about precision, your team's safety, and the protection of existing structures. Hydraulic ring saws deliver a flat, straight-edged cut with almost no overcut. There is much less risk of cracks or chips in the remaining material. Also, these saws allow for easy changes between different ring blades, so you can adapt to whatever material is on the project, whether it is concrete, block, or stone.
Our ring saws are especially valuable for jobs in tight spaces, indoor settings, or locations where dust and debris must be minimized. The sound profile is quieter than that of gas engines, helping you maintain a professional worksite and remain compliant with local noise regulations.
Did You Know?
According to the International Association of Concrete Drillers & Sawers, crews using hydraulic ring saws can complete deep cuts up to 30% faster than with wall saws, with less edge damage. This is a significant time-saver for projects that involve multiple penetrations or large structural modifications. (Source: IACDS Annual Report, 2023)
Engineered in Canada, Built for Canadian Sites
All ACG Saws hydraulic ring saws are engineered in Canada. Our teams understand local jobsite demands, from harsh winters through to peak summer construction season. Each ring saw is designed for portability, long life, and ease of use, with robust components and tested safety features. Our goal is to keep your project moving efficiently and safely, whether you are cutting a simple window opening or handling a complex, multi-floor retrofit.
Our technical support staff are real tool experts, ready to help you choose the best ring blades, troubleshoot, and recommend safe, efficient use for every crew.
Conclusion: Why Should You Choose a Hydraulic Ring Saw for Deep Concrete Cutting?
Hydraulic ring saws are the right choice when you need to cut through deeper concrete with accuracy and speed. For projects that go beyond what standard saws can offer, ring blades and hydraulic systems allow you to make professional, clean cuts even in tough site conditions. At ACG Saws, our commitment to Canadian manufacturing, field-tested performance, and expert support gives you the confidence to take on your most ambitious cutting jobs.
Unlock Deep Cutting Power—Trust ACG Saws for Your Next Project
Ready to cut deeper, faster, and cleaner? ACG Saws offers the highest-performing hydraulic ring saws and ring blades for Canadian contractors who value both power and precision. Reach out today to learn how our solutions can make your next big concrete job easier and safer.
